MNG-10 modular PSA Nitrogen Generator delivering 1 m3/h at 99.5% purity at reference conditions (inlet pressure 7.5 Bar and inlet temperatures between 10 & 25 Deg C).
Maximum inlet pressure of 10 Bar, Minimum Inlet Temperature of 5 Deg C and Maximum Inlet Temperature of 45 Deg C.
Mikropor's MNG Nitrogen Generators come complete with ;
- Activated Carbon Tower
- Buffer Tank
- 2 x "P" Grade Filters 5 Micron (After Carbon Tower & After Buffer Tank)
- N2 Generation Unit
- Mini PLC Controller
- Oxygen Sensor
- Flow Sensor
- Pressure Transmitter
| Nitrogen Generator Specifications | |
| N2 Generator Type | Modular |
| Air Inlet Connection | 1/2" |
| N2 Outlet Connection | 1/2" |
| N2 Flow at 99.5% Purity (m3/h) | 1 |
| N2 Flow at 99.999% Purity (m3/h) | 0.2 |
| N2 Buffer Tank Size | 26 Ltr |

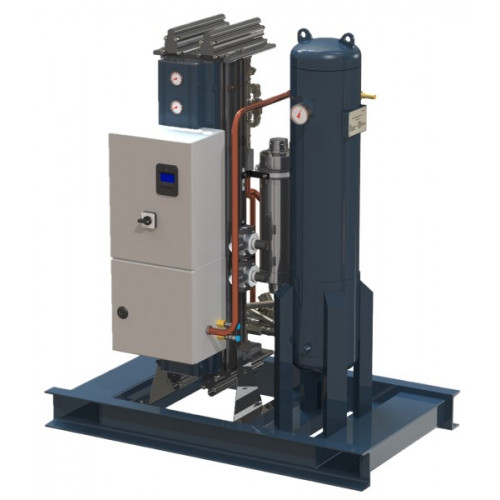

MNG-10 Modular PSA Nitrogen Generator
- Brand: Mikropor
- Product Code: MNG-10
- Availability: Made to Order-Please contact us
